LITOSFÄR

Product features

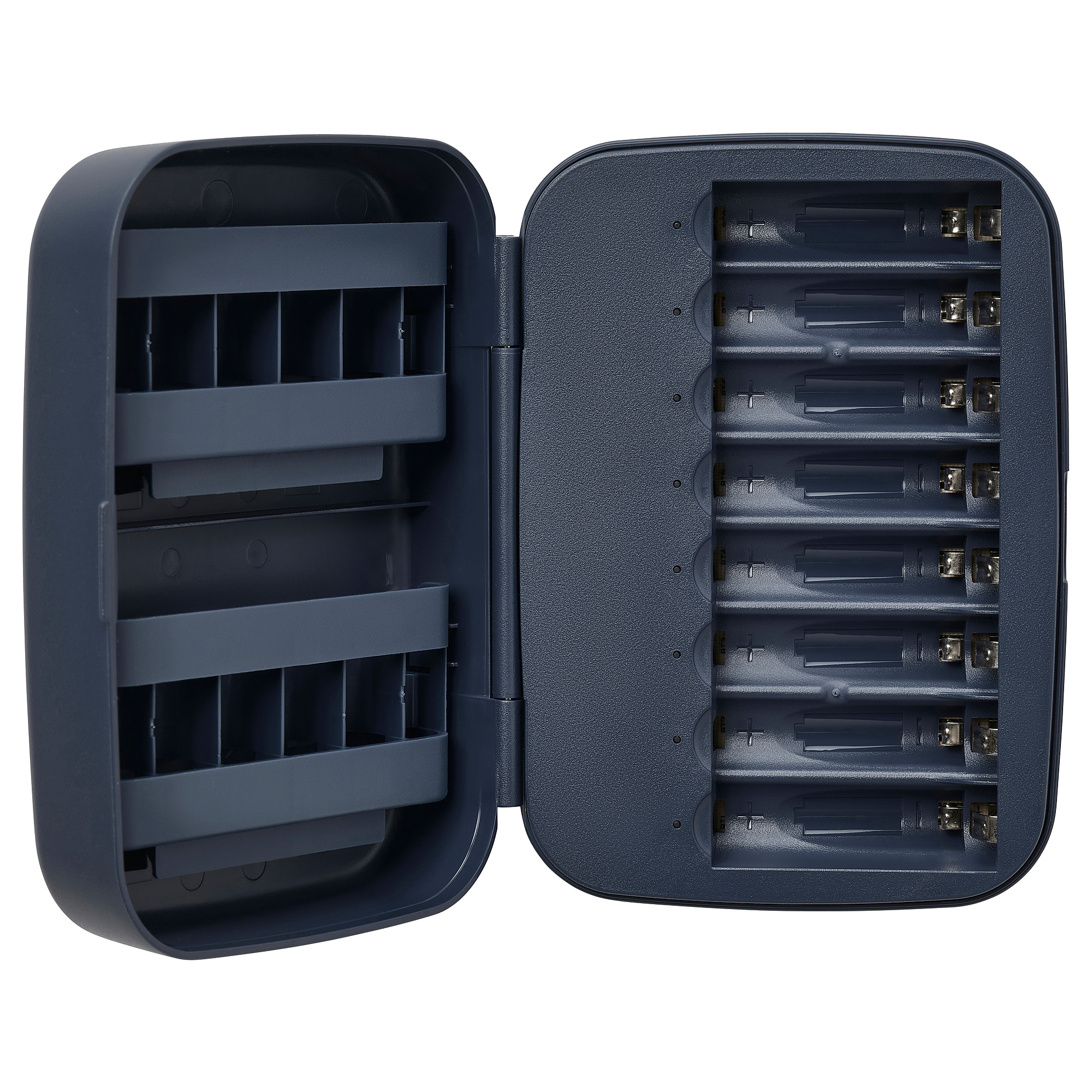

LITOSFÄR is a practical battery charger and battery storage in one.

8 separate charging slots make it possible to charge 1-8 rechargeable batteries at the same time, and to mix AA and AAA batteries.

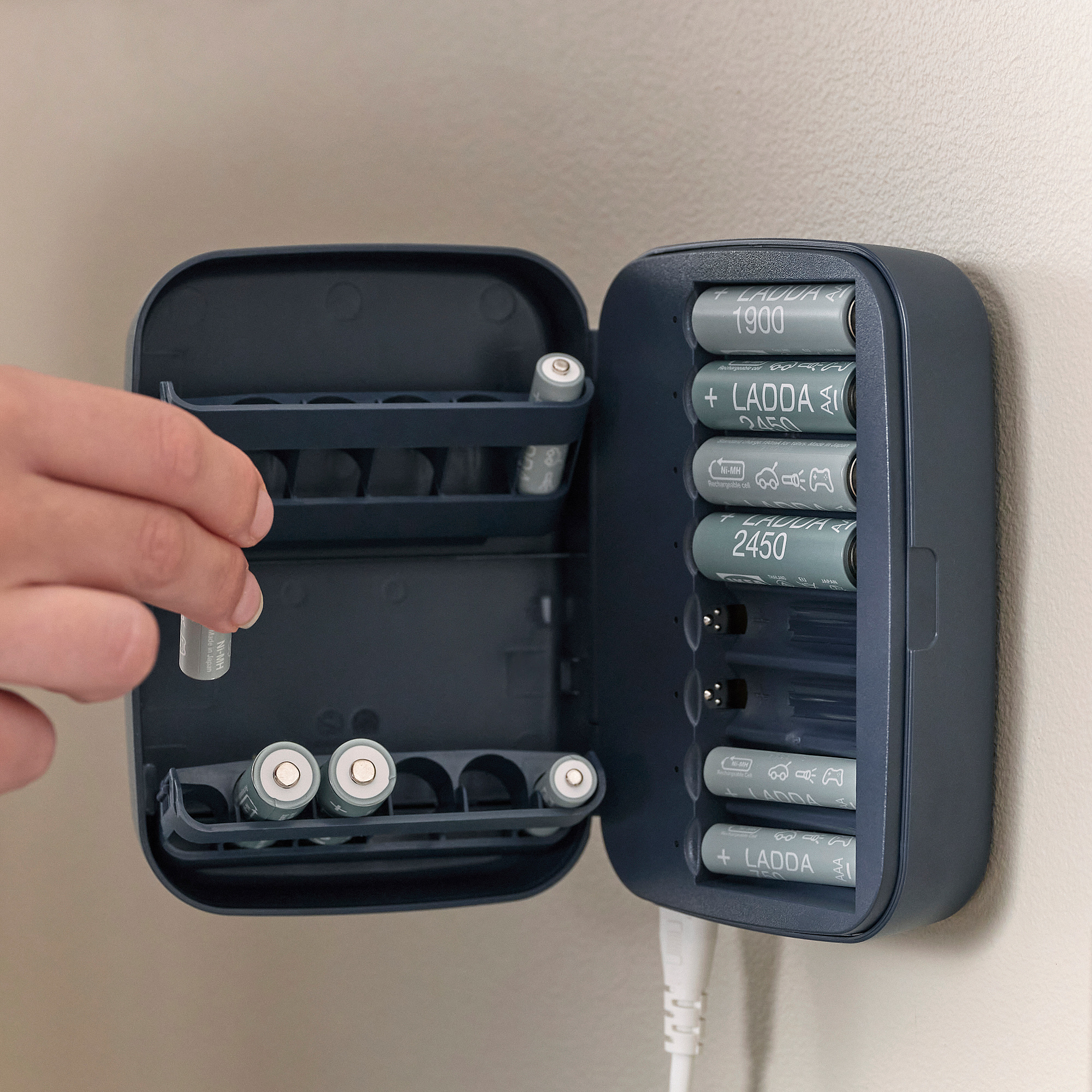

In the storage compartment on the left side, you can store up to 8 AA batteries and 4 AAA batteries, so you always have extra batteries close at hand when needed.

After the batteries are fully charged and the charger remains connected to a power outlet, it will go into trickle charging. Batteries can be stored in the charging slots without discharging.

This battery charger is made of 50% recycled plastic.

Explore more Read less

Good to know

Safety and compliance

Do not attempt to charge non-rechargeable batteries.

Charge only Ni-MH type rechargeable batteries with minimum capacity 500mAh (AAA) or 1000mAh (AA).

Regularly examine for damage of cord, plug, enclosure and other parts. In the event of such damage, the product must not be used with the charger.

For indoor use only.

This product bears the CE mark.

Functions

The charger must be connected to a power outlet for trickle charging to work during storage.

Charge is terminated by individual minus delta or zero delta voltage detection (-dV/dT or 0dV/dT).

Additional information

Observe the polarity marks plus (+) and minus (−) and ensure correct battery insertion into charger or product.

LED indicator shows charging status.

Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.

Charger operating temperature: 0°C to 40°C.

IKEA recommend LADDA rechargeable batteries.

Special waste handling may be required. Please contact your local authorities for more information.

Charging time may vary based on the device’s battery capacity, charge level, the age of the battery and the temperature in the surrounding area.

Performance

The typical charging time for 1–8 batteries is 11 hours for AA/HR6 2450 mAh, 9 hours for AA/HR6 1900 mAh, 10 hours for AAA/HR03 900 mAh, and 9 hours for AAA/HR03 750 mAh.

Designer

David Wahl

Article no 405.466.97

Box/ Lid/ Middle shell:
Polycarbonate plastic (min. 50% recycled)
Battery box:
Polypropylene plastic
Magnet:
Neodymium, Nickel-plated

Remove the socket from the power outlet before cleaning.
Wipe clean with a dry cloth.
